Through Bore Slip Ring 6 Circuit 10A IP51Voltage 240VAC Low Torque

Product Categories

JINPAT Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Through Bore Slip Ring 6 Circuit 10A IP51Voltage 240VAC Low Torque
Brand: JINPAT
Price: 1 USD

Brand Name : JINPAT

Model Number : LPK025-0610

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 50K units/week

Delivery Time : 2 weeks ARO5

Packaging Details : Standard/On Request

Number of circuits : 6CKT

Current : 10A/signal

Voltage : 240VAC/DC

Dielectric strength : 500VAC@50Hz

Product name : Electrical slip ring

Ip rating : IP54 - IP68

Contact Now

Advantages

Super thin, only 25mm, especially designed for applications with limited axial installation space,

maintenance-free
Low torque, two precise bearings, smooth operation
Adopts advanced imported brush shrapnel to achieve longer service life

Features

6 channels for current, 10A each
Two precise rolling bearings contribute to low torque
Demonstrates high precision, excellent transmit performance, smooth and reliable operation

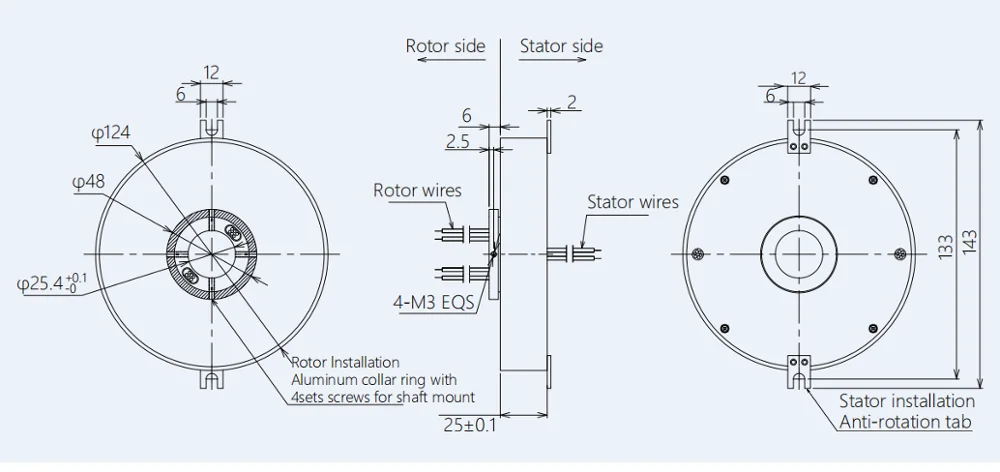

Outline drawings

Product Tags:

pan cake slip ring
